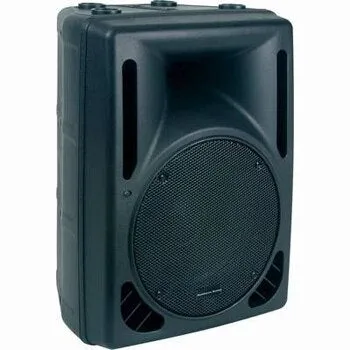

The PXI 10P is a 200-watt self-powered, two-way active loudspeaker encased in a lightweight ASB Nylon Fiber cabinet. This speaker is designed as both a portable and a permanently installed unit. The PXI 10P speaker includes a pole mount slot and rubber feet on the bottom of the unit for portable applications and also includes rigging points on the top, bottom, and rear of the speaker for permanent and flight installations.



• Heavy Duty ASB Nylon Fiber Cabinet

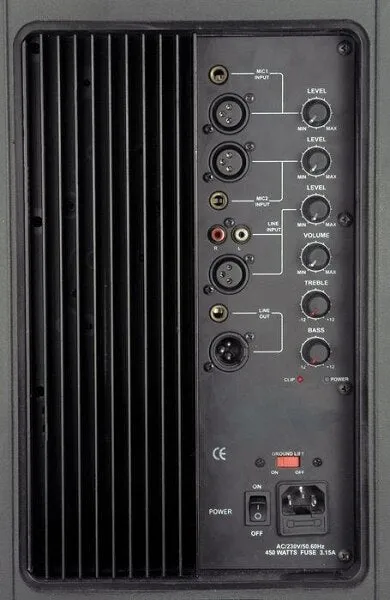

• Built in XLR & 1/4” Mic and Line Level Inputs
• XLR and RCA Balanced Inputs
• Seperate Microphone Volume Control
• Electronic Crossover
• Built-in Rigging Points
• 1/4” and XLR Line Outputs
• Built-in Pole Mount Socket
• Bass and Treble Tone Controls
• Clip and Power LEDs
• 200 Watts
• Built-in Heavy Duty Carrying Handle
• Attached heavy Duty Rubber Feet

• Dimensions: 13.58” x 16.53” x 26.37” / 344mm x 419mm x 669mm
• Weight: 31 Lbs. / 14 kgs
• Environmental conditions
• Operational temperature: 5 to 35˚C (41 to 95˚F)
• Operational humidity: 25 to 85% RH (non-condensation)
• Storage temperature: -20 to 60˚C (4 to 140˚F)
• Frequency Response: 40KHz - 20KHz (-3dB)
• Crossover: 3,500 HZ
• Nominal Dispersion: 90˚ x 50˚ (HXV)

• Power supply: AC 115v/230v, 50/60Hz
• Power consumption: 12 Watts Typical
• Accessories: I.E.C. Power Cord
• Input Sensitivity
• Line: 80mV
• Microphone: 5mV
• Output Sensitivity: 94 ± 2dB/m/w
• Channel Equalizer
• Bass: /-12dB
• Treble: /-12dB
