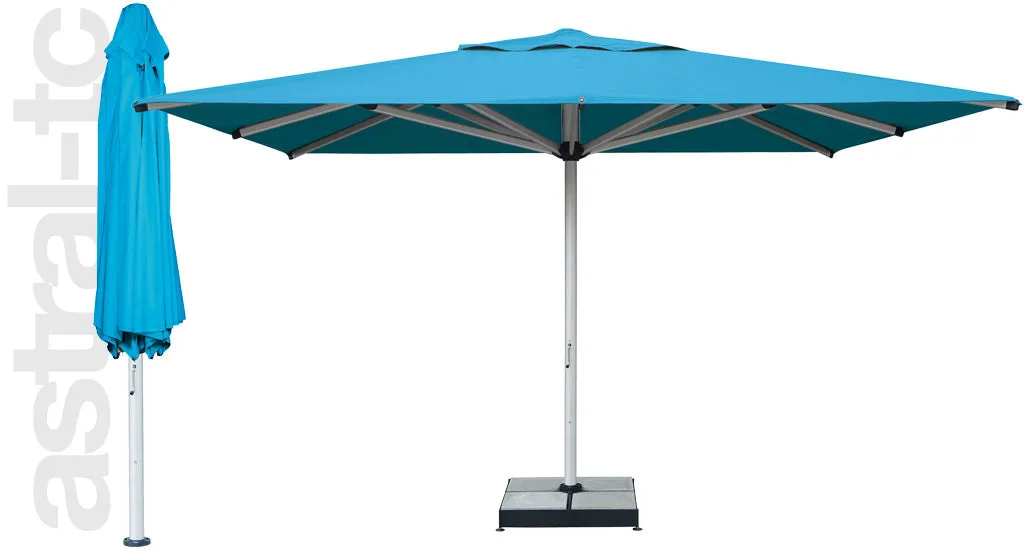

he Astral-TC is designed to close over table and chairs. To turn this gigantic umbrella, just turn the crank handle only 7 times.
Mast Type: | 3.25” Round - Centerpost |
Wall Thickness: | 3.25” Round - Centerpost |
Applications: | Commercial |
Durable high performance hub and fittings
Simple to operate crank lift system
Telescopic mast allows umbrella to be closed, so it does not hit the table beneath it
Removable crank handle
Internal mast stem
Optional internal mast stem cover (included)
Protective cover (included)
Available In:
Specifications
| Item No. | Size meters / feet | Canopy Shape | Coverage | Min. Base Weight* |
|---|---|---|---|---|
| ASTRAL-TC-35S | 2.0m / 6'6" | Square | 43 sq. ft. | 100 lbs. |
| ASTRAL-TC-40S | 2.5m / 8'2" | Square | 67 sq. ft. | 100 lbs. |
| ASTRAL-TC-50S | 2.5m / 8'2" | Octagon | 52 sq. ft. | 100 lbs. |
| ASTRAL-TC-50 | 5.0m / 16'4" | Octagon | 210 sq. ft. | 600 lbs.** |
Bases
Steel bases
We recommend the astral-tc to be mounted, using our in-ground or concrete mount kits. As an alternative, steel base frames are available. See Base Weight Guide under Specifications.
astral-tc 3.5S/4.0S/5.0 | |
Item Number: | BC05XM |
Size: | 7" x 33.5" x 33.5" |
Frame Weight: | 72 lbs. |
Note: | Accommodates 16" pavers/weights (sold separately). |
astral-tc 5.0S | |
Item Number: | SBGC200SQ |
Size: | 36" |
Weight: | 213 lbs |
Note: | SM PLATE (Adapter Plate) is required. |
Mounting Options
Mounting Options
Shademaker offers concrete and in-ground mount kits for more style with a smaller footprint.
Concrete Mount Kit
MKC17
in-ground mount kit
MKG17
