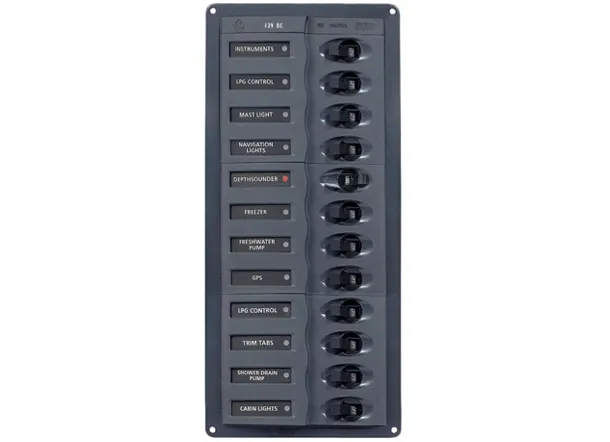

BEP 12V DC Circuit Breaker Panel 12 Way - Vertical - No Meters

Key Features

• Red LED indicates systems on
• 12V
• Marine grade powder coated aluminium
• ABYC standard voltage indication
• Green LED backlit labels
• Stylish clip on contour fascia
• Label sets and busbar supplied with panels
• Cutout size - 10mm (3⁄8") inside all external edges

Specification & Dimensions

• No of Circuits: 12
• Circuit Breakers: 3 x 5A, 4 x 10A, 4 x 15A, 1 x 30A
• Negative Bus: 6 Way
• Height: 285mm
• Width: 127mm
• Depth: 65mm
