Cavity Sliders USA Inc is the premier manufacturer of sliding door hardware. With strict attention to detail from design through to production, Cavity Sliders offers a product line that is high quality, reliable and operates smoothly. From humble beginnings in New Zealand as a family business, Cavity Sliders has grown to become a world leader in the supply of sliding door hardware. With branches throughout the United States, Australia and New Zealand, Cavity Sliders is committed to upholding the quality level of its existing product line. Emphasis is also placed on developing new products to meet the changing trends of the modern market.

Description

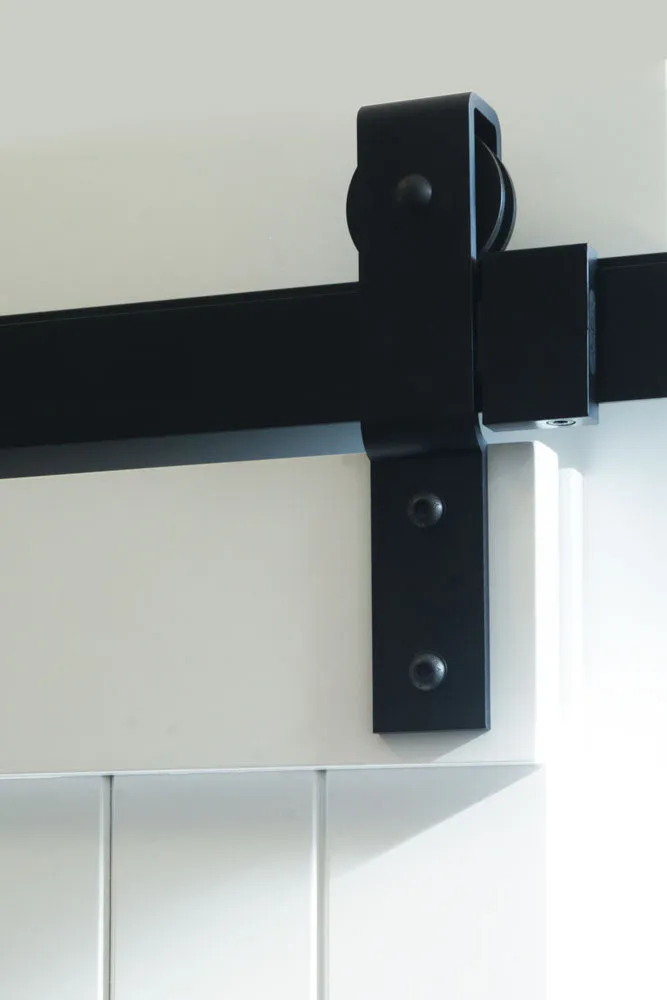

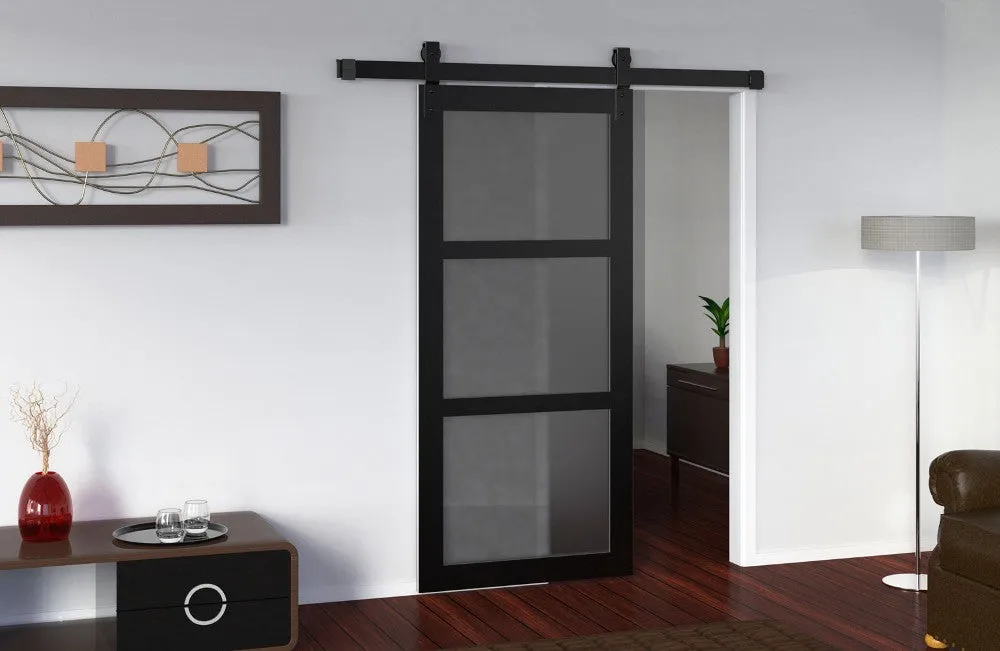

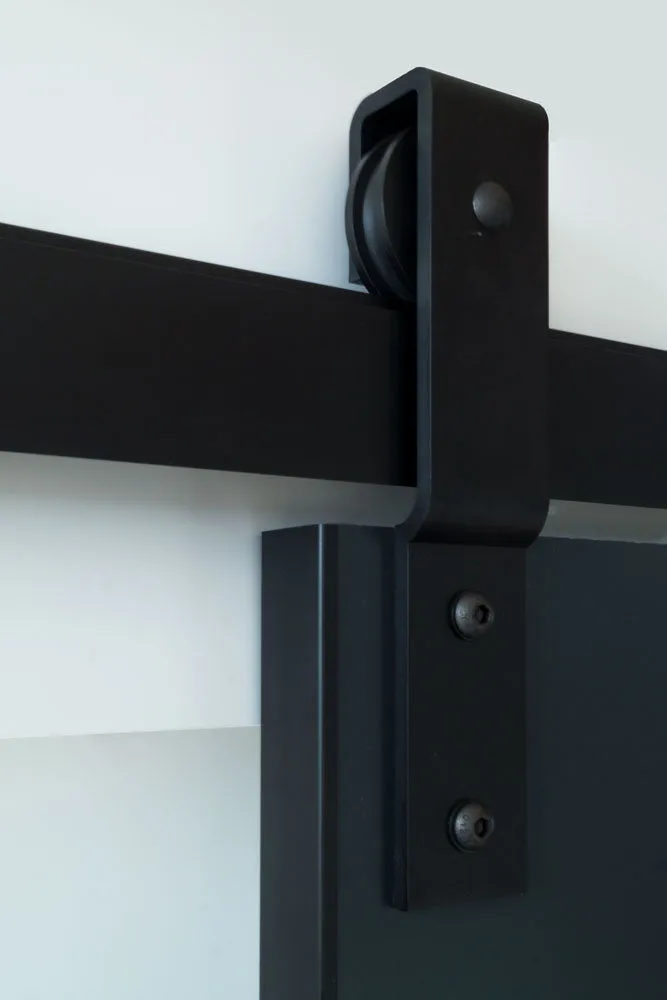

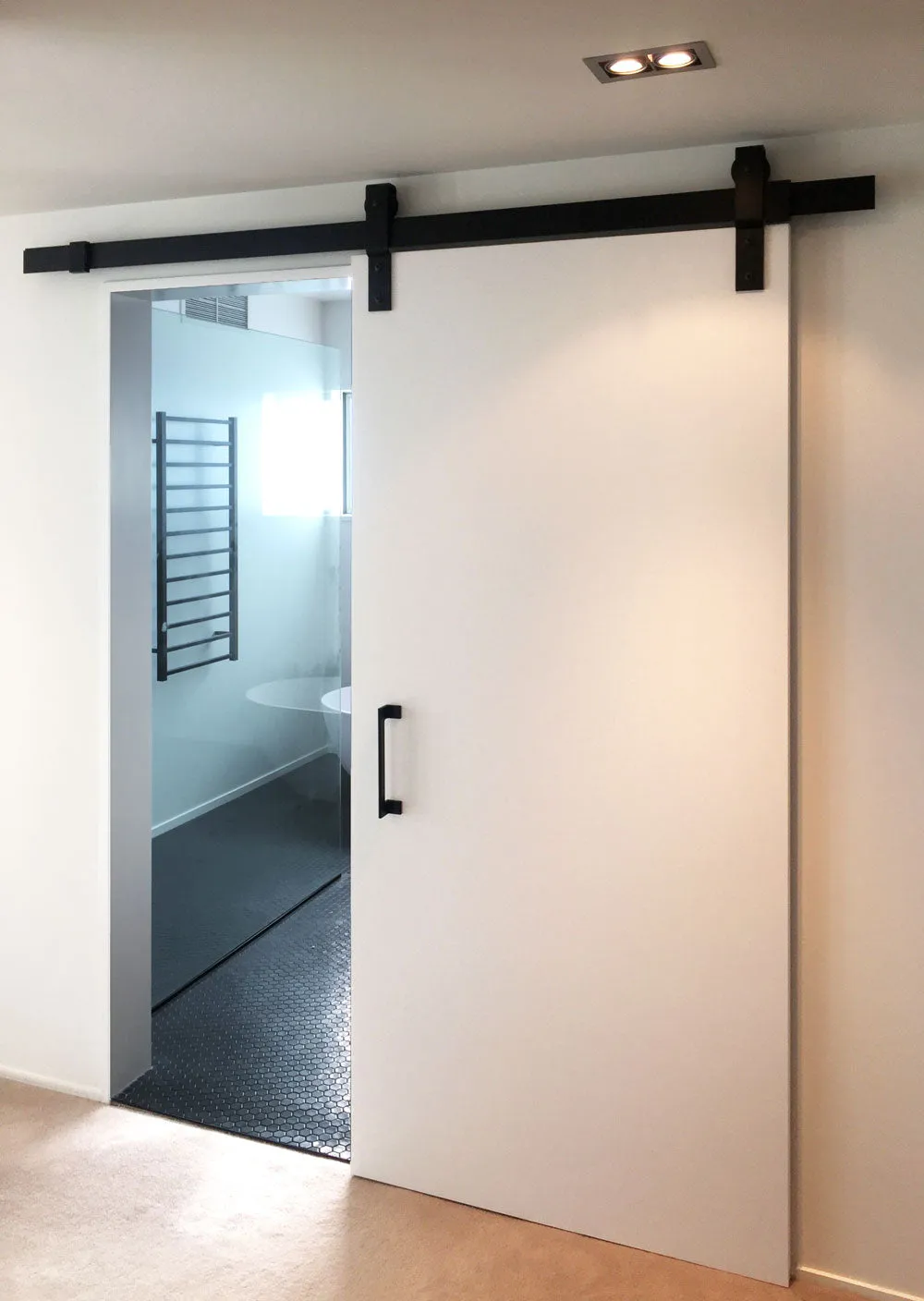

Traditional barn door track suitable for surface sliding applications where there is enough strength in the wall to mount and support a side-track with door above the opening.

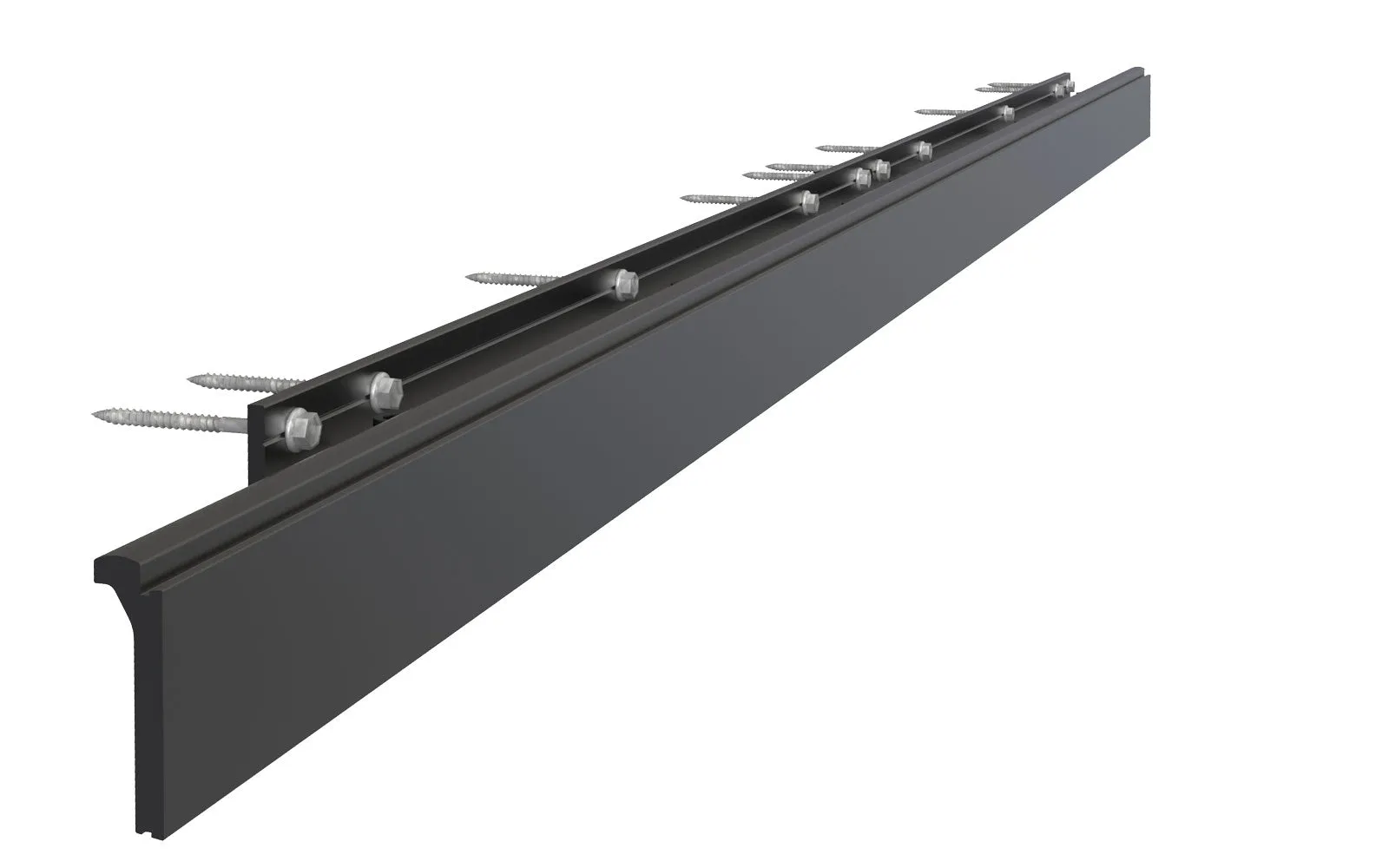

The track bracket is supplied with pre-machined fixing slots for quick and easy installation. The track is pre-finished black anodized and supplied complete with fixing bracket, stops, door hangers and T-Guide.

• Track is high-quality, heavy duty extruded aluminum.
• Black anodized finish.
• Track can be easily adjusted to allow for different wall clearances with baseboard & moulding.
• No exposed fasteners give a clean look.
• Ultra smooth running acetal wheels.
• Pre-machined mounting holes. Additional holes can be drilled on site to match studs.
• Anti-jump system ensures wheels cannot jump off the track.
• Maximum weight per track: 650lb (see installation notes).

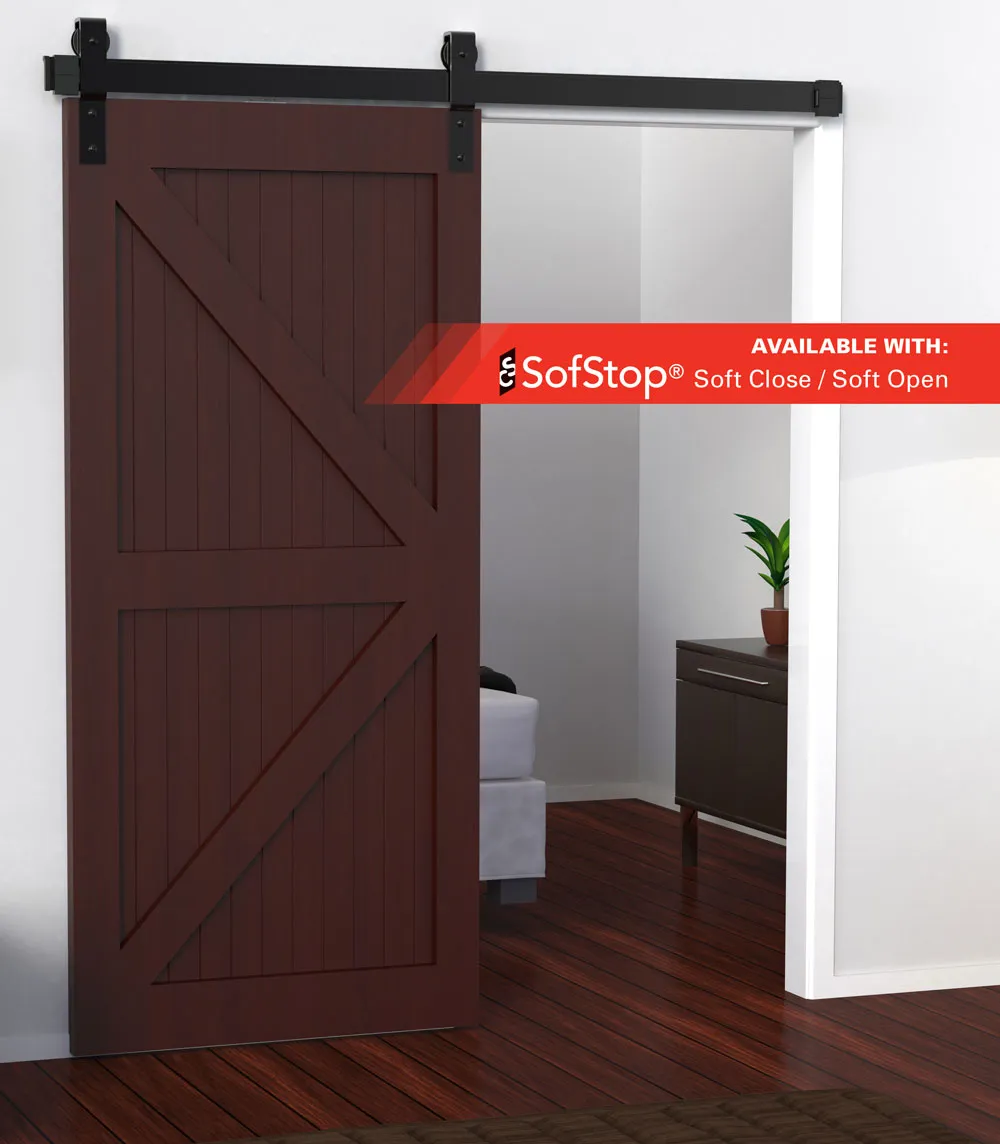

• SofStop® 264 lb soft close / soft open kit available (suitable for retrofit).

How to order

1. Choose Narrow or Wide bracket
2. Specify track length
   1. NARROW (available in 6', 7', 8', 9', 10', 12' pre-cut lengths)
   2. WIDE (available in 6', 7', 8', 9', 10', 12', 13', 14', 15', 16', 17', 18' and 19’ pre-cut lengths)

3. Select hanger packs (one pack per door)
4. Select SofStop packs (2 packs required for soft open & close. Max. door weight 264 lb)
