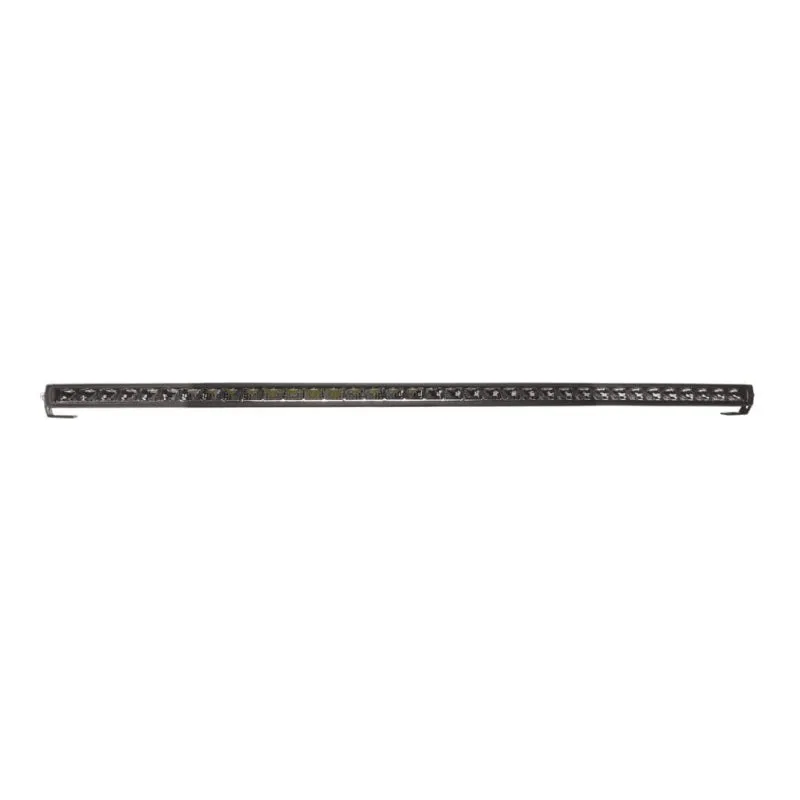

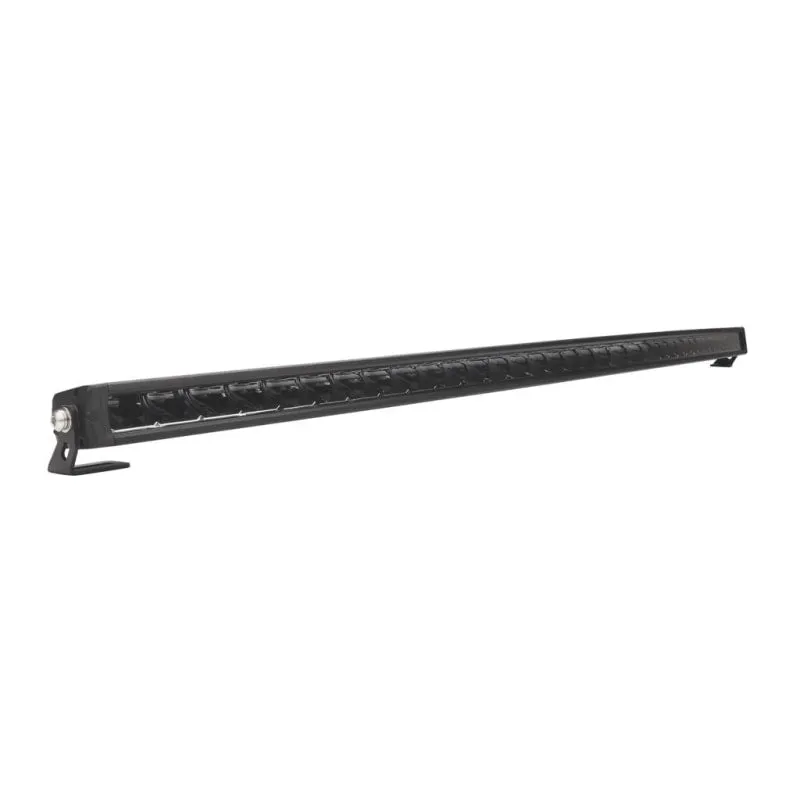

50 Inch Ultra Slimline Single Row Curved LED Driving Lamp Lightbar by Ignite

Features

• 9 - 36 Volt 252 Watt
• Light Transmittance >95%
• Integrated Electronic Thermal Management (ETM)
• Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
• and Pressure Equalising Vent
• Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
• Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
• 500mm Lead with 2 Pin Deutsch Plug
• Driving Beam Pattern
• Over and Under Voltage Protection
• Reverse Polarity Protection
• UV, Water and Shock resistant
• 50,000 Hours LED Lifespan
• ECE R112 (Ref 50), R10 and CE Approved
• IP68 and IP69K Rating
• Environment Temperature: -40°C ~ 60°C
• 36 x 7 Watt High Intensity LP LED's
• 22,200 Raw and 18,800 Effective Lumens and 6,000K
• 1 Lux @ 460m and 211,600cd Peak Beam Intensity
• Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens

Specifications

• Beam Type: Other
• Depth (mm): 58
• Height (mm): 55
• Rows: Single
• Mount: Other
• No. of LED: 36
• Series: Other
• Type: LED
• Voltage: Multivolt
• Watts: Other
• Width (mm): 1274
• Current Draw: 16amp @ 12 Volt and 7.7amp @ 24 Volt

Warranty

• 5 Year Manufacturer Warranty
