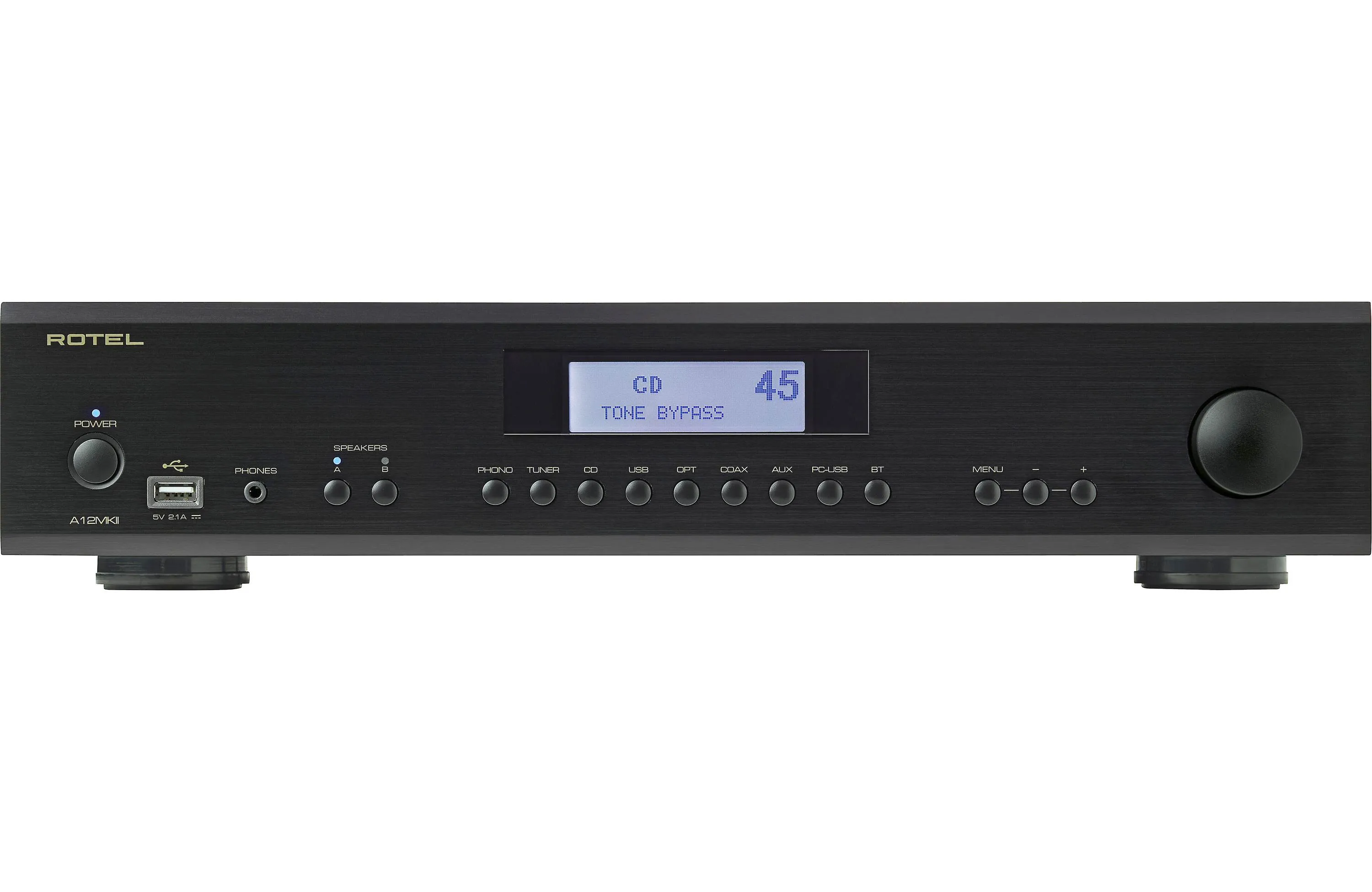

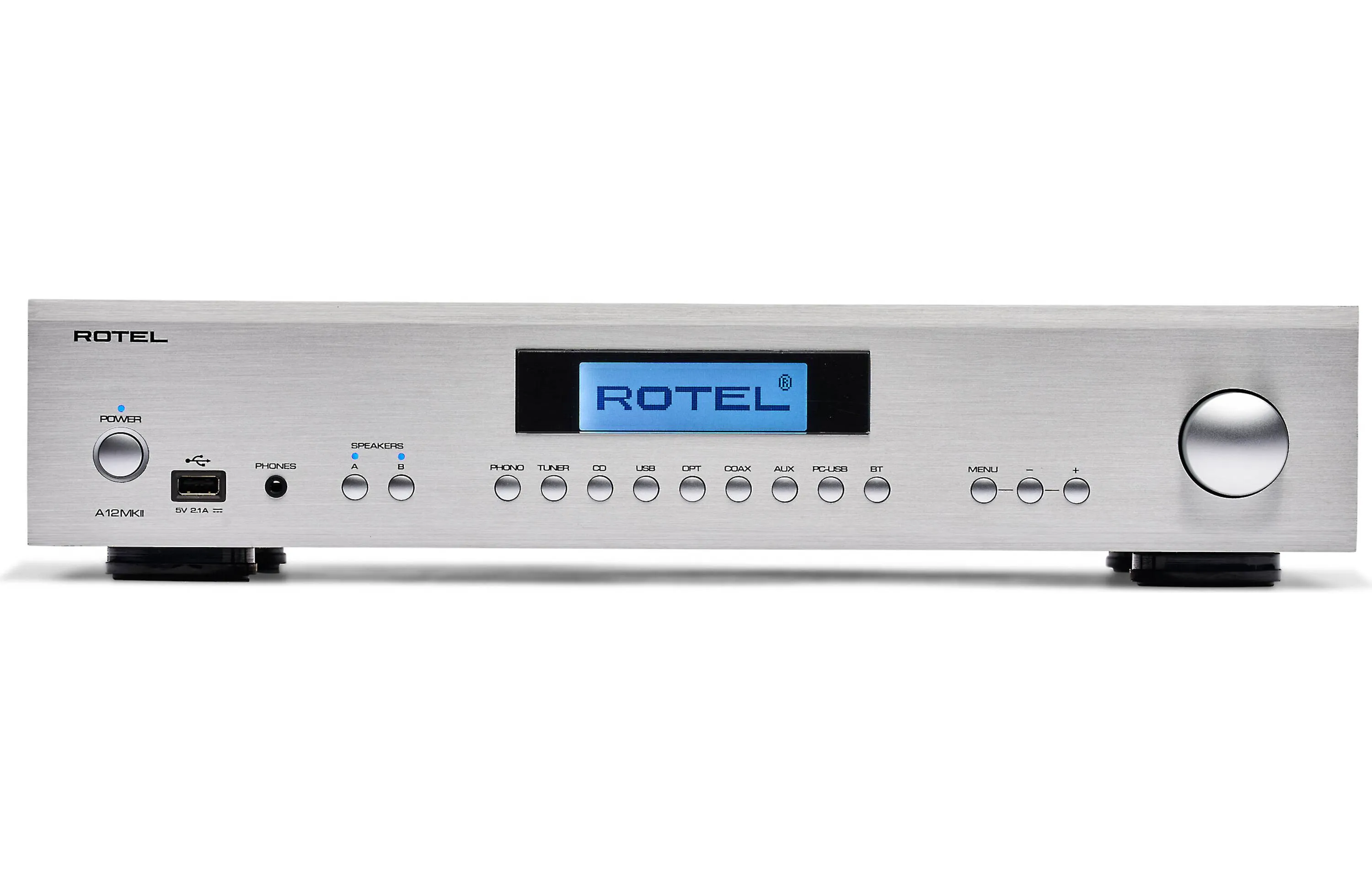

Experience Rotel A12 MKII's Sleek Design, and World Class Sound

• Extreme input versatility with digital and analog sources
• 60W RMS gives the performance you need for smaller speakers and spaces
• Built-in Phono Stage

Amazing Sound and Value

The A12MKII stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated amplifier supports your favorite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimized circuits and a 32-bit DAC deliver spacious and open reproduction of the music.

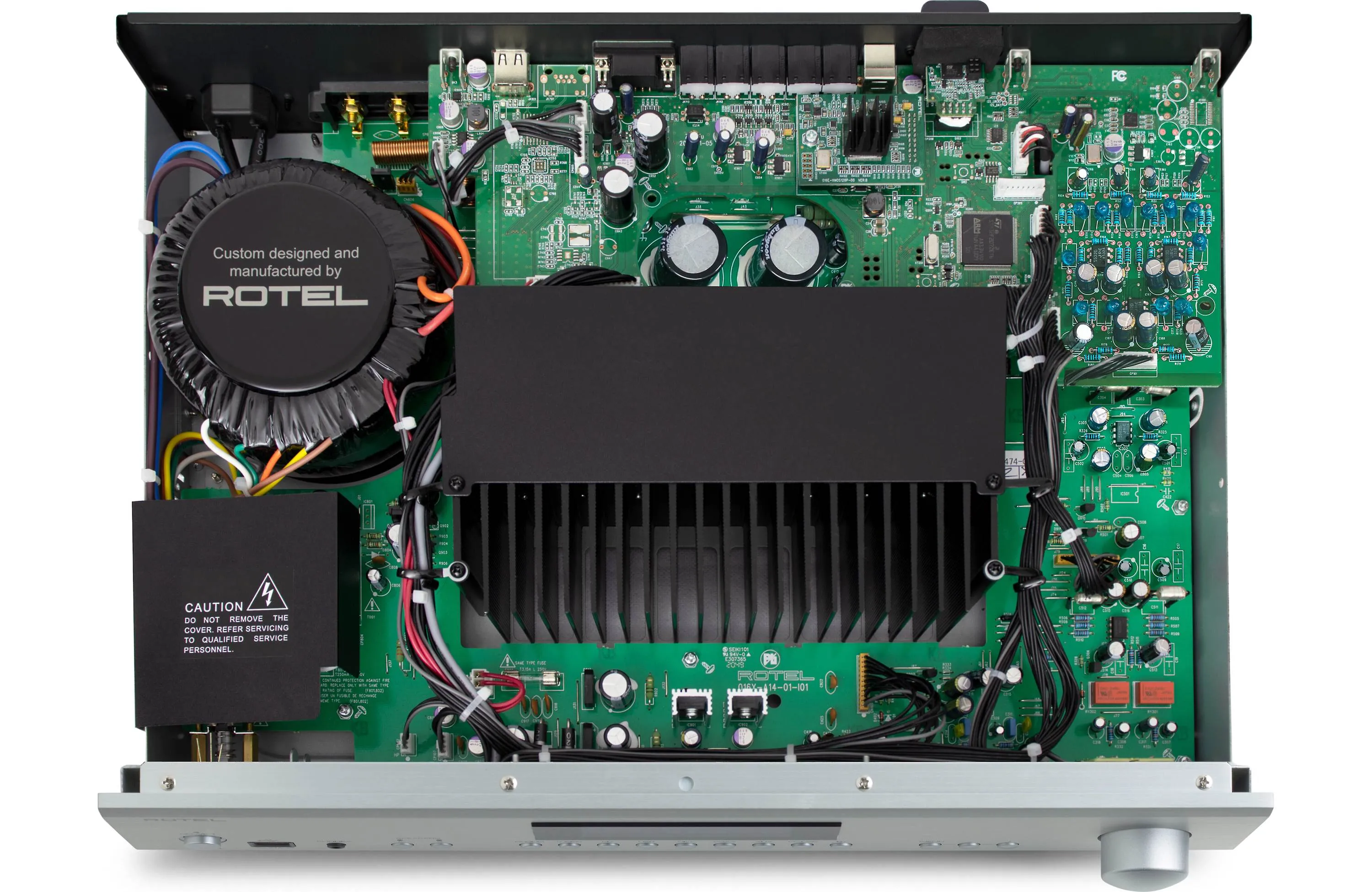

The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers. Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.

A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favorite sources. The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimized circuits preserving the integrity of the audio stream. Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.

Specifications

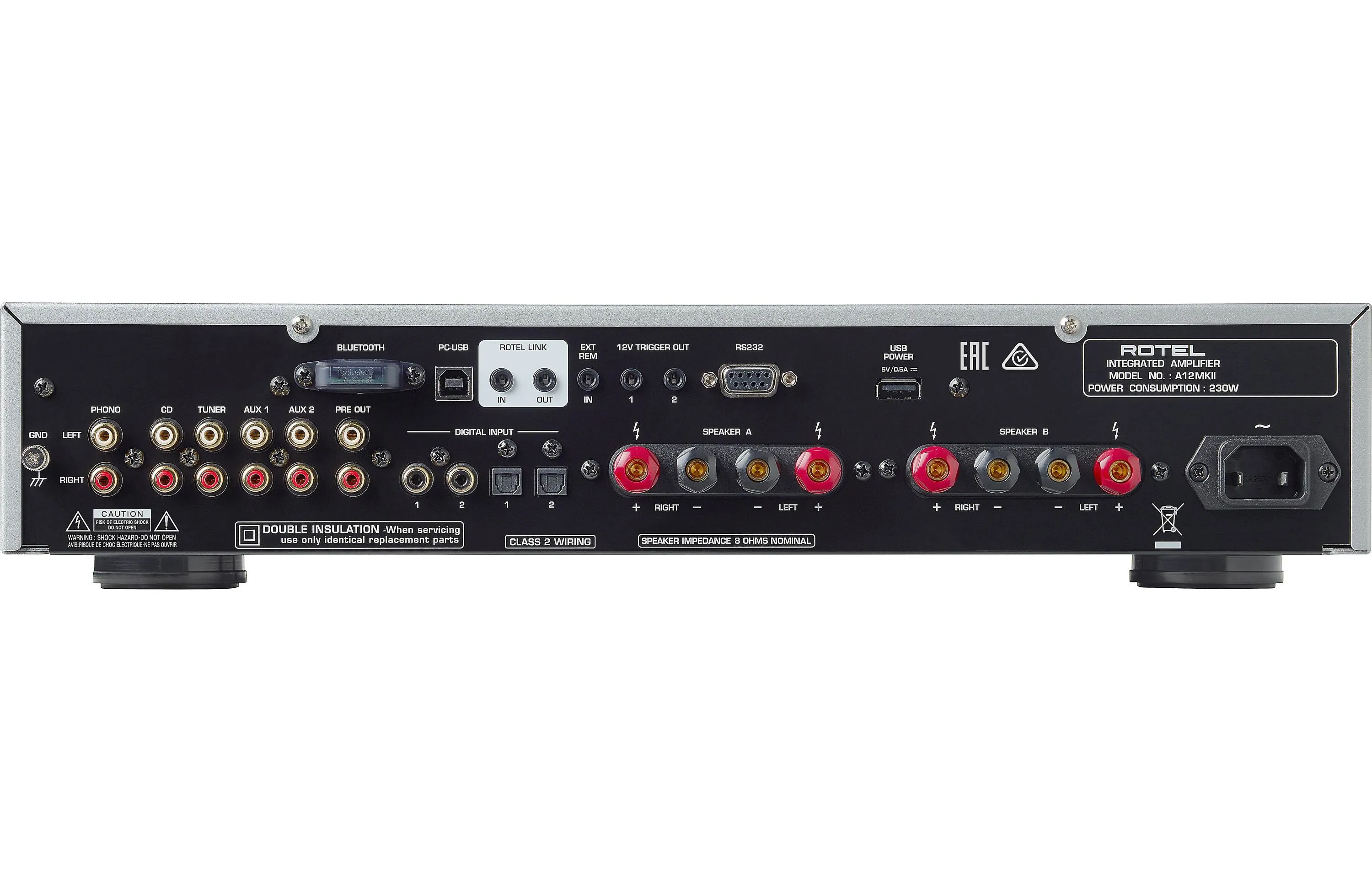

Input/Output

• Digital Inputs
• PC-USB/USB-B
• Digital Coax x 2
• Optical Digital x 2
• Analog Inputs
• RCA CD Input
• RCA Tuner Input
• RCA Aux Input x2
• RCA Phono
• Outputs
• RCA Preamp Output
• 3.5mm Headphone Output
• Speaker Output: 2 x Dual conductor bare wire, connector lug, or dual-banana

• Maximum Power Output: 120W/per channel (4ohm), 60W/per channel (8ohm)
• Total Harmonic Distortion (THD): <0.018%
• Frequency Response
• Phono Input: 20Hz - 20kHz, ±0.5dB
• Line Level Inputs: 10Hz - 100kHz, ±0.5dB
• Digital Inputs: 10Hz - 90kHz, ±2.0dB
• SNR (IHF "A" Weighted)
• Phono Input: 90dB
• Line Level Inputs: 100dB
• Digital Inputs: 103dB
• Input Sensitivty
• Phono Input: 3.4mV
• Line Level Inputs: 230mV
• Digital Inputs: -20dBfs
• Input Impedance
• Phono Input: 47kΩ
• Line Level Inputs: 24kΩ
• Digital Inputs: 75Ω
• Input Overload

• Line Level Inputs: 4.5V

Size, Weight, and Power Consumption

• Dimensions: 17" × 3 5/8" × 13 1/2" (430 × 93 × 345mm)
• Front Panel Height: 3.15"
• Weight: 19.31lbs.
• Power Requirements: 120V, 60Hz
• Power Consumption: 230W
• Standby Power Consumption: <0.5W
