Details
Perfect flexability
Sonance, the company that invented the in-wall and in-ceiling speaker category, introduces the world’s first adjustable-width Soundbar. Both models feature a patent-pending design that allows the installer to adjust the width to perfectly match any display between 50” and 80” (127cm to 203cm). The Sonance Soundbars ensure exact alignment every time; even if the display is changed. Developed utilizing state-of-the-art design and modeling software and featuring driver technology used in Sonance’s next generation Visual Performance® Series, these LCR configuration Soundbars offer incredible sonic performance, while the passive design allows the use of any high quality amplifier or AV receiver to deliver the best solution for their client.

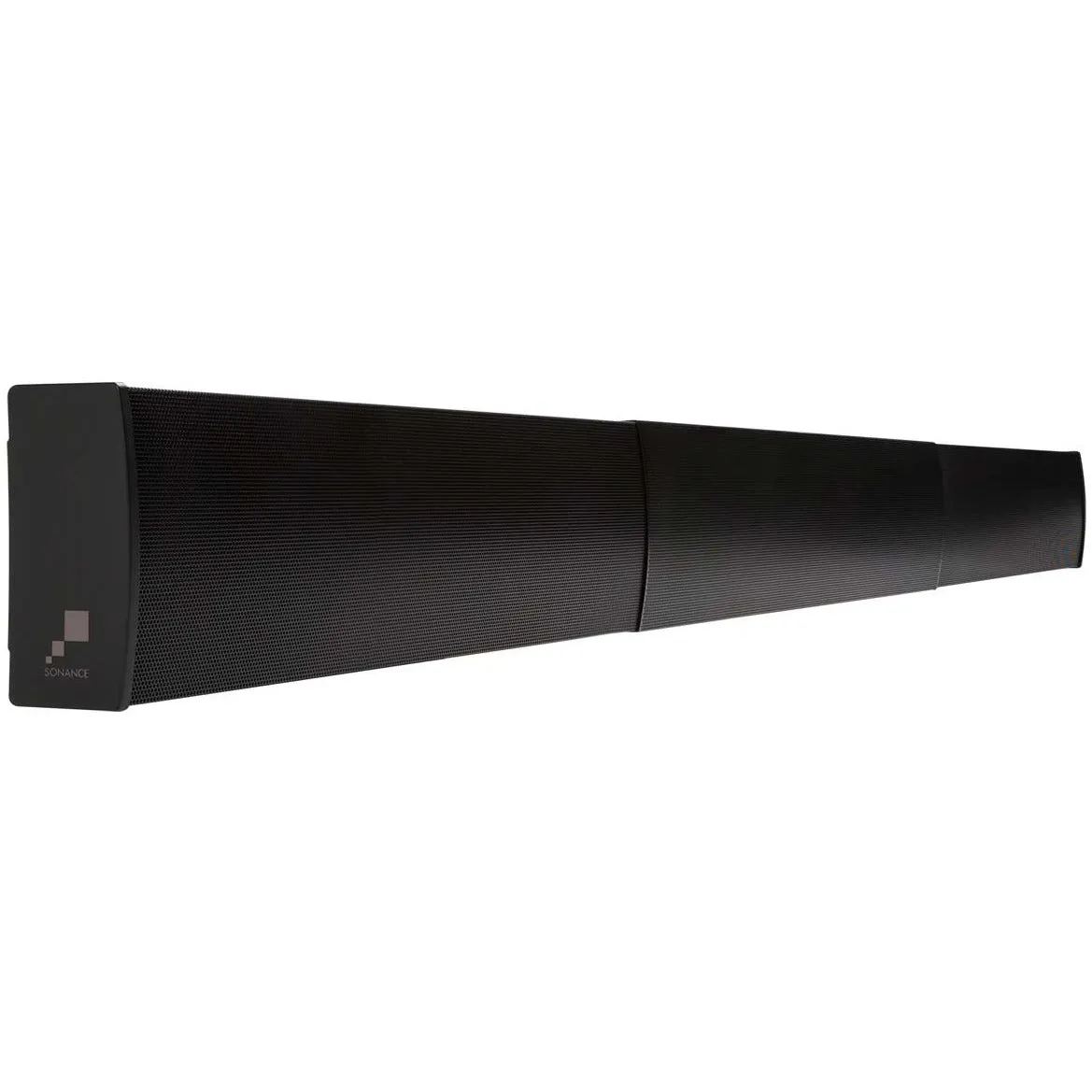

Adjustable-Width Soundbar
- Exclusive patent-pending adjustable-width design to perfectly match any display between 50" and 80"
- 3-way speaker design featuring coaxial midrange and tweeter plus dual high-excursion woofers for crystal clear dialog, precise detail and wide sound stage
- Supplied with hardware for VESA TV mount, wall mount or table top
- Discreet and minimalistic industrial design blends-in with most flat screen displays
- Aircraft-grade extruded aluminum chassis and powder coated metal grille will not buckle, distort or discolor over time
- Pair with Sonance surround speakers and Sonance subwoofer for perfect results
Specifications
SB46L Soundbar |
SB46M Soundbar |
|
Tweeter |
Three 1” (25mm)powder coated aluminum domes, Ferrofluid-cooled, chambered
|
Three 1” (25mm) powder coated aluminum domes, Ferrofluid-cooled, chambered
|
Midrange |
Three 4” (102mm) Kevlar / Nomex laminated cones with rubber surrounds
|
Three 4” (102mm) Kevlar / Nomex laminated cones with rubber surrounds
|
Woofer |
Six 4 1/2” (114mm) Kevlar / Nomex laminated cones with rubber surrounds
|
Six 4 1/2” (114mm) Kevlar / Nomex laminated cones with rubber surrounds
|
Frequency Response |
90Hz - 20kHz ±3dB |
90Hz - 20kHz ±3dB |
Impedance |
8 ohms nominal; 6 ohms minimum
|
8 ohms nominal; 6 ohms minimum
|
Power Handling |
50 watts minimum; 150 watts maximum |
50 watts minimum; 150 watts maximum |
Sensitivity
|
88dB SPL (2.83V/1 meter) |
88dB SPL (2.83V/1 Meter) |
Shipping Weight |
35 lbs (15.9kg) pair |
30 lbs (13.6kg) pair |
Speaker Height x Depth | 134mm x 65mm |
134 x 65mm |
Adjustable width |
61 1/2” to 77 5/16” (1562mm to 1964mm)
|
43 7/8” to 59 5/8” (1114mm to 1514mm)
|
